2.4.1. Lab – Puppet automation with f5_command¶

Following is a sample Puppet manifest file (site.pp) to run a TMSH command:

node bigip1 {

f5_command { '/Common/tmsh':
  tmsh  => "tmsh create ltm node 2.2.2.2",
}

}

Running the puppet device -v –user=root command will have the TMSH command apply to the F5 device.

$ sudo puppet device -v --user=root --trace
Info: starting applying configuration to bigip1 at https://10.1.1.246:443
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for bigip1
Info: Applying configuration version '1530316553'
Notice: /Stage[main]/Main/Node[bigip1]/F5_command[/Common/tmsh]/ensure: created
Info: Node[bigip1]: Unscheduling all events on Node[bigip1]
Notice: Applied catalog in 0.56 seconds

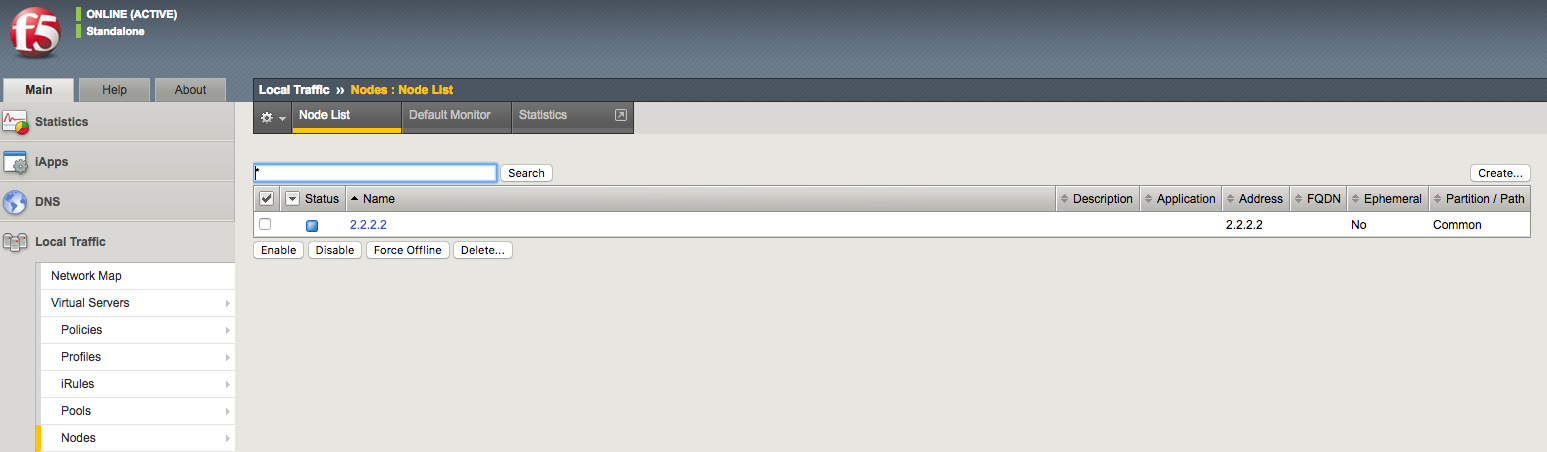

Go to BIG-IP GUI to verify that the server node has been successfully created.
